Amped Wireless APA20 High Power 700mW Dual Band AC Wi-Fi Access Point Item # 741647

 |

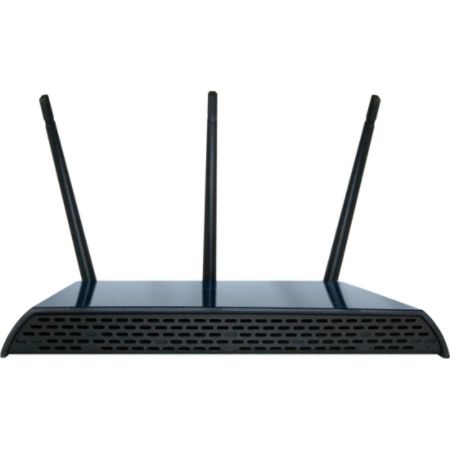

Amped Wireless APA20 High Power 700mW Dual Band AC Wi-Fi Access Point
$ 134 .99 / each $134.99
Add a Protection Plan (optional)  Learn More
Includes Coverage For Accidental Drops & Spills
In Stock
Free delivery
Estimated delivery 3-7 business days

    Description

    The Amped Wireless High Power 700mW Dual Band AC Wi-Fi Access Point adds long range, Wi-Fi access for existing wired networks or networks with older wireless technology. The APA20 is equipped with a total of ten amplifiers; two 2.4GHz amplifiers, four 5.0GHz amplifiers, and four low noise amplifiers. It also has three high gain antennas to provide extreme range, gigabit Wi-Fi coverage. The APA20 features double amplification with advanced 2-stage 5GHz amplifiers that ensure the longest range and the most coverage. This Access Point features an advanced internal processor, gigabit networking ports for blazing fast wired connections, a USB port for sharing files, and simultaneous dual band Wi-Fi access. Powered by 802.11ac Wi-Fi technology, the APA20 provides gigabit Wi-Fi speeds (AC1200: three times faster than 802.11n) with enough bandwidth to deliver multiple HD streams simultaneously to all of your Wi-Fi devices for next generation Wi-Fi access throughout your entire home, backyard, or office. Simple Plug and Play set up, makes setup as simple as connecting the Access Point to your router's network port. No software or additional steps needed.

    Back To Top

    Product Details

    Item # 741647
    Manufacturer # RZ4515
    Wireless Transmission Speed 867 Mbit/s
    power source AC Adapter
    Wireless Security WEP; WPA; WPA2; WPA Mixed; WPS
    HDMI No
    Ethernet Port Yes
    Gigabit Ethernet Port Yes
    System Requirements A router or network switch with an available network (LAN) port Computer with wired (RJ-45) or wireless (802.11a/b/g/n or ac) adapter
    UNII Maximum Frequency 5 GHz
    Number of Network (RJ-45) Ports 4
    Certifications & Standards High Power 700mW Dual Band AC Wi-Fi Access Point; 1 x Detachable High Gain 2.4GHz Antenna; 1 x Detachable High Gain 5.0GHz Antenna; 1 x Detachable High Gain Dual Band Antenna; 1 x Power Adapter (100-240v); 1 x RJ-45 Ethernet Cable; 1 x Setup Guide; 1 x CD Users Guide; 1 x Desktop Stand / Cable Organizer
    quantity 1
    antenna type High Gain Antenna
    Serial Port No
    PoE (RJ-45) Port No
    10Gigabit Ethernet Port No
    Product Name High Power 700mW Dual Band AC Wi-Fi Access Point
    Total Number of Antennas 3
    Antenna Gain 5 dBi
    manufacturer Amped Wireless
    VGA No
    Audio Line Out No
    Powerline No
    brand name Amped Wireless
    Wireless LAN Standard IEEE 802.11ac
    USB Yes
    UNII Band Yes
    Input Voltage 12 V DC
    Network (RJ-11) No
    Management Port No
    ISM Maximum Frequency 2.40 GHz
    ISM Band Yes
    form factor Desktop; Wall Mountable
    warranty length 1-year limited
    model name APA20
    Fast Ethernet Port Yes
    Show More ▾
    Back To Top

      Customer Reviews

      Rated 4.9 out of 5�by 14 reviewers.
      Rated 5 out of 5�by Tech Support: Krista #181 Great support in getting APA20 setup working! thanks February 26, 2016
      Rated 5 out of 5�by Great customer service, even after 53 weeks I bought my WAP just over a year ago. I love it as it has provided high throughput and has been very reliable, until I used it for 53 weeks. At this point it lost connection with the internet on both the 2.4 and 5 GHz bands. To recover I had to power cycle the WAP and then all was working well. It got progressively worse requiring up to three power cycles a day to maintain a internet connection. Since it was one week out of warranty I thought I was out of luck but I called customer service anyway. I was pleasantly surprised for they have arranged to cover the unit under warranty and have the unit sent back for warranty repair. Great WAP and great customer service. December 23, 2015
      Rated 5 out of 5�by Works well I use Polk Omni A1 for music 8 units kept losing signal along with the smart TV. all of these items are in the middle of the house and the netgear router is in the office in the corner of the house. So this solved the problem. Had to call for assistance. Cedrick Jr - Concierge #161 helped me to manually set it up. Now it works good November 5, 2015
      Rated 5 out of 5�by Excellent support The access point never worked properly and with Alan's help it works perfect. April 8, 2015
      • 2016-03-27 T06:04:06.394-05:00
      • bvseo_lps, prod_bvrr, vn_prr_5.6
      • cp-1, bvpage1
      • co_hasreviews, tv_14, tr_14
      • loc_en_US, sid_741647, prod, sort_default
      2 3 4 next>>
      Back To Top

      From the Manufacturer|Powered by Webcollage

      Thank You Is the information in this section helpful? Yes / No

      Product Overview









      Gigabit Wi-Fi 802.11b/g/n/ac



      The Amped Wireless High Power 700mW Dual Band AC Wi-Fi Access Point adds long range, Wi-Fi access for existing wired networks or networks with older wireless technology. The APA20 is equipped with a total of ten amplifiers; two 2.4GHz amplifiers, four 5.0GHz amplifiers, and four low noise amplifiers. It also has three high gain antennas to provide extreme range, gigabit Wi-Fi coverage. The APA20 features double amplification with advanced 2-stage 5GHz amplifiers that ensure the longest range and the most coverage. This Access Point features an advanced internal processor, gigabit networking ports for blazing fast wired connections, a USB port for sharing files, and simultaneous dual band Wi-Fi access. Powered by 802.11ac Wi-Fi technology, the APA20 provides gigabit Wi-Fi speeds (AC1200: three times faster than 802.11n) with enough bandwidth to deliver multiple HD streams simultaneously to all of your Wi-Fi devices for next generation Wi-Fi access throughout your entire home, backyard, or office. Simple Plug and Play set up, makes setup as simple as connecting the Access Point to your router's network port. No software or additional steps needed.

      Note: The APA20 is NOT a router. It is a High Power 700mW Dual Band AC Wi-Fi Access Point that attaches to your existing router.



      How It Works



      GREAT FOR LARGE HOMES & OFFICES

      Large Home




      Give your home a better Wi-Fi signal that covers more square feet

      Office



      Add powerful long range Wi-Fi to your entire office
      Unleash your laptop, tablet, and smartphone




      Unleash your laptop, tablet, and smartphone in more places with full coverage Wi-Fi

      KEY FEATURES

      • Up to 8,000 Sq Ft of Wi-Fi Coverage
        Bring long range wireless Internet to your large home or office.
      • Ultra-Fast 802.11ac Wi-Fi Speeds
        Experience more on multiple devices, simultaneously, with ultra-fast Wi-Fi transfer speeds.
      • More Power and Better Wi-Fi Performance
        Achieve maximum power with advanced 2-Stage amplifiers that boost your signal twice.
      • Penetrate Walls and Eliminate Dead Spots
        Add more range with a dedicated single band 2.4GHz antenna, a dedicated 5.0GHz antenna and a dual band antenna.
      • Universal Wi-Fi Range Extender
        Compatible with any 802.11a/b/g/n/ac single or dual band Wi-Fi router or network.
      • More Connections for More Devices
        Connect more PCs, A/V devices, servers and printers at gigabit speeds with 4 additional ports.
      • Share Files with USB
        Attach a USB hard drive or flash drive to easily share files with networked computers.



      • Create Additional Networks
        Add up to eight additional networks for guests and conference rooms.
      • AirPlay®, AirPrint™, and Home Sharing
        Compatible with all Apple networking features and supported devices.
      • Smart Security and More Control
        Restrict network access to specific users and set schedules for when your extended network is on or off.

      SIMPLE PLUG AND PLAY SETUP

      1. Connect the Access Point to your router's network port.

      2. The Access Point will automatically configure itself to your network.

      3. Connect to the Access Point wired or wirelessly. That's it!

      Simple Plug and Play




      SHARE FILES WITH USB

      Easily share files with your Network, using your USB storage.



      Share your USB Storage

      CONNECTORS AND PORTS

      Connectors and Ports



      THE AMPED WIRELESS DIFFERENCE



      The Amped Wireless Difference

      The Amped Wireless Difference


      Amped Wireless Elite Support
      Range Increase Guarantee
      Wi-Fi Analytics Tool
      Industry Leading, U.S.-Based In-House SupportPerformance and Satisfaction GuaranteeFree PC & Mobile App:
      Analyze & Optimize your Wi-Fi Networks



      * Specifications are subject to change without notice.
      Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. AC1200 wireless signal speeds achieved when connecting to other 802.11ac devices. Output power specifications are based on the total maximum output power with antenna gain.

      May not work with non-standard Wi-Fi routers or routers with altered firmware, such as those from third party sources or those with proprietary software. May not work with routers that do not comply with IEEE standards.

      AirPlay, AirPrint, Home Sharing are either registered trademarks or trademarks of Apple Inc. Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.

      High Power Access Point Comparison Chart

      High Power Wireless-N 600mW Gigabit Dual Band Access Point High Power 700mW Dual Band AC Wi-Fi Access Point
      Speed Standard 600N AC1200
      Frequency Simultaneous 2.4/5.0GHz
      802.11a/b/g/n             		Simultaneous
      2.4/5.0GHz
      802.11a/b/g/n/ac
      Output Power Up to 600mW Up to 700mW
      Wireless Range* 2.4GHz: Up to
      7,500 sq ft
      5.0GHz: Up to
      5,000 sq ft             		2.4GHz: Up to
      8,000 sq ft
      5.0GHz: Up to
      6,500 sq ft
      Antenna Type External,
      Dual Band             		External,
      Dual Band
      Antenna Gain 2 x High Gain 5dBi
      Omni-Directional             		3 x High Gain
      Omni-Directional
      Ports 1 Gigabit Network,
      4 Gigabit LAN             		1 Gigabit Network,
      4 Gigabit LAN
      SMART FEATURES
      Smart Security Features
      Yes
      Yes
      Guest Wi-Fi Networks
      Yes
      Yes
      True Plug and Play Setup
      Yes
      Yes
      Adjustable Wi-Fi Coverage
      Yes
      Yes
      Gigabit Ports
      Yes
      Yes
      Power Processor
      Yes
      Yes
      Dual Band Interference-Free
      Yes
      Yes
      USB Storage Support Yes
      (Local sharing only)             		Yes
      (Local sharing only)
      OTHER FEATURES
      Indoor Stand Vertical Vertical
      Mounting Options Wall, Desktop Wall, Desktop
      Range Increase Guarantee
      Yes
      Yes
      Included Accessories Gigabit Network Cable Gigabit Network Cable
      Free Wi-Fi Analytics Tool App (PC & Android)
      Yes
      Yes
      1 Year Warranty
      Yes
      Yes
